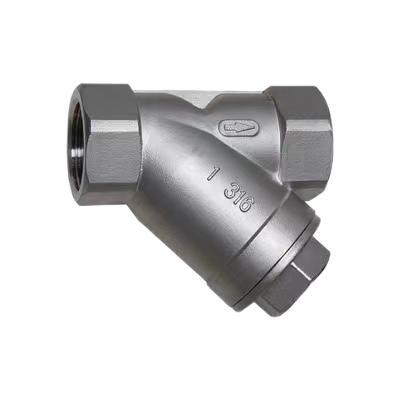

GL11Y丝口过滤器
时间：2022/11/16
产品详情
丝口过滤器性能范围：
|
公称压力MPa |
2.5 |
2.5 |
2.5 |
|
强度试验压力MPa |
3.8 |
3.8 |
3.8 |
|
低压气密封试验压力MPa |
0.6 |
0.6 |
0.6 |
|
高压密封试验压力MPa |
4.4 |
4.4 |
4.4 |
|
适用介质 |
GL11 -25C |
GL11-25P |
GL11-25R |
|
水、油品、气 |
硝酸类 |
醋酸类 |
|
|
适用温度 |
-40～180℃ |
||
丝口过滤器产品材料选用表：
|
零件名称 |
GL11-25 |
GL11-25P |
GL11-25R |
|
|
1 |
阀体 |
WCB |
ZG1Cr18Ni9Ti CF8 |
ZG1Cr18Ni12Mo2Ti CF8M |
|
2 |
阀盖 |
WCB |
1Cr18Ni9Ti 304 |
1Cr18Ni12Mo2Ti 316 |
|
3 |
滤网 |
ICr18Ni9Ti 304 |
1Cr18Ni9Ti 304 |
1Cr18Ni12Mo2Ti 316 |
|
4 |
填料 |
聚四氟乙烯 |
||
丝口过滤器尺寸参数：
|
DN |
G |
L |
E |
B |
H |
|
6 |
1/4" |
63.5 |
11.5 |
24 |
42 |
|
10 |
3/8" |
64 |
13 |
24 |
42 |
|
15 |
1/2" |
65 |
14 |
26 |
43 |
|
20 |
3/4" |
80 |
15 |
32 |
50 |
|
25 |
1" |
89 |
17 |
41 |
60 |
|
32 |
11/4" |
107 |
20 |
49 |
64 |
|
40 |
11/2" |
118 |
20 |
56 |
70 |
|
50 |
2" |
140 |
22 |
69 |
88 |
